THORNTON ABBEY, LINCOLNSHIRE.

361

Archaeological Journal, Volume 2, 0389a.png

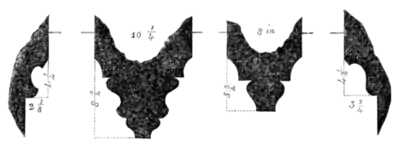

Detail of Groining of Gatehouse.

Archaeological Journal, Volume 2, 0389b.png

Jamb of East front of Gatehouse.

Archaeological Journal, Volume 2, 0389c.png

Jamb of Archway on which the Doors are hung, Archmoulds the same.

Archaeological Journal, Volume 2, 0389d.png

Jamb of Door South side.

Base Mould of West front.


String of Turret of East front.

Archaeological Journal, Volume 2, 0389e.png

Jamb of entrance to Gatehouse, North front.
