The Romans had pumps, aqueducts, water wheels (which were used to grind flour, saw wood & stone etc), valves & pipes (they are known to have used stone, clay, lead & copper for pipes).

All the ingredients in fact for a pneumatic tube system for delivery of small packages.

So, would an alternate past where the Romans had actually put all these things together to produce a pneumatic tube postal service for the city of Rome be plausible?

The air pumps would be powered by water wheels.

Only for government buildings and districts occupied by wealthy citizens of course.

How the Romans made lead pipes

Copper pipes (if used) can be made the same way (hammered around an iron or steel mandrel) so any issue of standardization is more or less inherently solved by the production method.

Message-tubes to feed into the pipes can also be made this way hammered around a slightly narrower mandrel with leather or felt (rather than rubber) washers to give a relatively airtight fit in the pipes.

elemtilas
  • 39,990
  • 7
  • 74
  • 155
Pelinore
  • 9,243
  • 2
  • 21
  • 57

6 Answers6

33

Reality check, sadly, I'd have to say is:

IMPLAUSIBLE

The only thing truly implausible about the scenario is slaves. Rome had a lot of them. It becomes a simple matter of economics: it's much cheaper to build an aqueduct than it is to supply Rome with water via lines of slaves forming a bucket chain all the way up into the mountains; whereas it's much cheaper to tell a slave to "pop on over to M Lucius Cicero's office with this packet of letters" than it is to build a pneumatic tube system on a large scale.

Is it technologically possible? Absolutely! Does it satisfy the cool factor? Sure! But is it plausible in a heavily slave dependent Roman Empire? That I'd have to say is no.

elemtilas
  • 39,990
  • 7
  • 74
  • 155
  • 5
    "But is it plausible in a heavily slave dependent Roman Empire? That I'd have to say is no." then I'll just have to build in a sudden shortage of slaves resulting from a loss of large portions of the empire :) – Pelinore Jan 31 '19 at 03:37
  • 4
    @Pelinore -- alternatively, you could just ignore me and do it anyway! (That's what *I* would do in your situation!) Check out S.P. Somtow's Aquiliad for an alternate Rome hooked on steam. Pneumatic tubes would fit right right in to that kind of scenario! – elemtilas Jan 31 '19 at 03:39
  • @Pelinore, If there were no cheap slaves, Roman Empire could have any tech up to real-world european XIX century available to them. – user28434 Jan 31 '19 at 09:09
  • 3
    One reason to do it which counters the slave issue is security. There's a reason shops use vacuum systems to transport money within the shop. (Even modern supermarkets do it.) If you're worried about your slaves getting robbed, or if you're transporting secrets which you don't want to trust a slave with, then a secret pneumatic tube system keeps whatever you're transporting away from prying eyes. Unless someone can break into the tube partway along, of course, but that maybe gives you a plot point. – Graham Jan 31 '19 at 10:52
  • 1
    @Pelinore if there were such a shortage of slaves, they would have an extremely long list of far greater concerns (like food) than trying to develop a pneumatic tube message system. The benefits simply are not anywhere near the cost, especially considering they would also be lacking the slaves to build the system too. What exactly is the problem being solved, and why is this exceedingly expensive and truly experimental system the solution? – pluckedkiwi Jan 31 '19 at 13:48
  • 1
    I think all things considered, it's really not all that expensive --- Rome already had a robust pipe making industry. They were terribly good at plumbing after all! The problem being solved, of course, is the improved efficiency of bureaucratic communications. – elemtilas Jan 31 '19 at 13:52
  • @pluckedkiwi : the Roman empire is run by men, men like toys, nerds (sorry, "men") rarely worry about the cost of their toys, it's how we got where we are today : but being a touch more serious, what elematilas said ^ & add what Graham said about security. – Pelinore Jan 31 '19 at 13:52
  • 1
    @elemtilas "robust pipe making" yes, unique, handmade pipes that were capable of carrying water. I don't think that's the same as the airtight pipes smooth, uniform, and strong enough for pneumatic purposes. They would have to develop that technology quite a bit. I'm not saying that's impossible, just that the pipes they used aren't even close to what they'd need for this undertaking. Perhaps you could address this in your answer – Aethenosity Jan 31 '19 at 15:57
  • @Pelinore You don't need to lose territory to lose slaves. You only need to stop conquest and invasions. – Sulthan Jan 31 '19 at 18:36
8

I'm voting for Yes

Lead pipes can be hermetically sealed. It's lead. It could be hermetically sealed with a candle (well... not a candle... but if they can extrude lead pipe they can obviously melt it).

It's possible that the Romans had springs. This is good! Because the manufacturing tolerances of the pipe probably wouldn't allow even a loose-fitting canister. BUT! Throw some spring-loaded legs with wheels on the thing such that a smaller canister can roll along with shock absorption... now we're cooking with gas!

But, those springs have consequences. No vacuum. But... that could easily be fixed with a leather collar to seal around the canister. More complex than I like... but it's solving problems.

I'm not super fond of pneumatics for this purpose. I don't believe sealing the pipe is the problem. I do believe creating the vacuum in the first place could be. Pumps are good for moving fluids, but you need really, really, really well sealed pumps to create even a mediocre vacuum.

Water, on the other hand.... Fill the pipe with water from the sending end. When the canister arrives, the recipient closes a ball valve, allowing the water to drain on both sides. How does the sender know when to let the water drain? When the pressure equalizes.

Now, officially, measuring pressure wasn't something that happend until the 1500s. But it wouldn't be hard to have a small pipe affixed to the main line, probably pointing up, such that when the line pressurized a spray of water came out of it ringing a bell. That would tell the sender to turn off the water and let it drain. The line would need to be designed such that the canister didn't fall back as the water drained. Hey... you might not even need the valves I mentioned. All you need is the ability to turn water on from both sides of the pipe.

So, yes, I believe it's plausible for an alternate-history story.

JBH
  • 122,212
  • 23
  • 211
  • 522
  • 6
    It doesn't work with water. Water is heavy and incompressible, so in order to move the message capsule one needs to move all the water in the tube. And the pressure differential is very much harder to maintain with water than with air, because water is heavy so that differences in elevation translate into differences in pressure. – AlexP Jan 31 '19 at 03:41
  • @AlexP, I agree it's harder with water than air, but I disagree that it doesn't work with water. I've watched sewer maintenance workers push cleaning pigs through sewer lines for hundreds of yards with just water. – JBH Jan 31 '19 at 03:45
  • 4
    Oh, water works better than air to push things. That's not the problem. The problem is making a postal system with water. For example, consider just an imperial palace, Nero's Domus Aurea. It covered some hundreds of acres on the slopes of the Palatine, Esquiline and Capitoline hills, with a difference in elevation of perhaps 150 feet. With water, that's some 3 atmospheres pressure just in the steady state. Moreover, I cannot see how the tubes could be kept filled with water while it circulates and yet allow insertion and retrieval of capsules. – AlexP Jan 31 '19 at 03:55
  • @AlexP, :-) If it was easy, it wouldn't be any fun! Besides, there needs to be some fiction in "science fiction." – JBH Jan 31 '19 at 04:02
  • 5
    The pneumatic postal system of New York City was a nightmare of maintenance. Every time a jam occur you had to open a vaccum pipe, fix it, seal again then restore the vacuum. Now picture this with sealed lead pipes. The system would be in service only the days where the temple of Janus was closed. (https://en.wikipedia.org/wiki/Temple_of_Janus_(Roman_Forum)) – Rekesoft Jan 31 '19 at 10:49
  • @Rekesoft, :-) the OP asked if it was feasible, not if it was practical. – JBH Jan 31 '19 at 16:09
  • 1
    @JBH Practicality should be a key point of feasibility. What's the point of doing things that aren't going to function 9 days of every 10? – Rekesoft Feb 01 '19 at 09:12
  • In any case, I wouldn't object about reading that concept in a novel. Science-fiction must be fun, as JBH said. If it's hard sci-fi, then no, but for an adventure in alternative Rome, yes, why not? It's cool. – Rekesoft Feb 01 '19 at 09:19
5

If you want to use pneumatic post, you need to be able to rely on vacuum. This implies that whoever manufactures the system has to ensure tight tolerances on both the pipes and the vessel, to prevent leakages disrupting the vacuum system.

I am not sure manufacturing processes in the Roman Empire could deliver a combination of narrow tolerances and large production, of the order of hundreds of meters of piping on a single building.

Moreover, lead is a poor material for this application: being really a soft metal, I doubt it would withstand the pressure differential between the vacuum on the inside and the atmosphere on the outside. You would either get breakages/deformations, or would need to use thicker walls, making again tolerances more broad.

L.Dutch
  • 286,075
  • 58
  • 587
  • 1,230
  • 4
    I have used these systems myself & believe you're greatly overestimating the pressure differential required to move a small light package tube through the pipes. – Pelinore Jan 31 '19 at 02:05
  • Right they are quite "loose". – Fattie Jan 31 '19 at 21:05
4

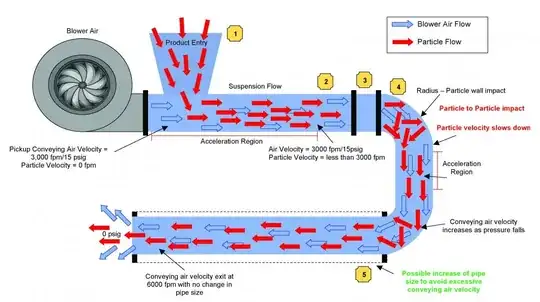

Pneumatic tube diagram

It is entirely possible to have a series of pneumatic tubes working in ancient Rome. The technology did not come into play until the early 1800's, but there is nothing that could have stopped it from happening at an earlier time.

Romans had lead pipes. They had waterways to transport water to homes. By adding leather and grease gaskets to connect the pipes, you can send objects down the pipe. You could use the existing aqueducts to run the pipes. The issue is having a standard circumference, say 6", a cylinder with leather gaskets on each end and a source of air pressure. This isn't much different than the version first operating in London in 1850. The air pressure on modern systems is only 15 psi. You could use a windmill, a water wheel to provide blower power. A blower is a simple squirrel cage fan turning fast enough to push air. Your bathroom fan is powerful enough to do the job.

Good luck with your series of tubes.

gwally
  • 4,437
  • 1
  • 16
  • 16
  • "The air pressure on modern systems is only 15 psi" : thanks, looked for that myself but couldn't find it :) – Pelinore Jan 31 '19 at 04:06
  • 1
    The air pressure on modern systems can be only 15 PSI because we've got tight manufacturing tolerances. In an ancient Roman system, you're going to need to generate much higher pressure at the blower to compensate for leakage, which in turn means burst seams from time to time. – Mark Jan 31 '19 at 22:29
  • 1
    @Mark You don't need much air pressure to send a spit wad through a straw. So long as most of the gap in the tube is filled with a leather gasket, a letter in a container will definitely propel forward. I feel as if you could drop the pressure even lower because the system does not have to operate like a modern system. – gwally Feb 01 '19 at 00:11
0

So, would an alternate past where the Romans had actually put all these things together to produce a pneumatic tube postal service for the city of Rome be plausible?

  • Technically : Maybe
  • Practically : No

As others pointed out, it would definitely have been technically possible if they wanted to build such a thing. There have been many amazing machines and structures built in the past which perplex us even to this day.

The fact this wasn't planned or build was probably beacuse, letters, especially written by and to wealthy people would probably be handled only by their trusted companions. There was no digital signature, thus, people took great care as to who had access to their letters and seals.

So if they built such a system, they would have to deploy massive guards to secure it. Thus, it was much better to let letters be delivered by the hand of your trusted compatriots.

Sachin
  • 141
  • 5
0

Technically quite possible, Practically not at all.

It would fail for the same reason that such systems failed to gain popularity in to open public for us.

Verifying delivery:
Intrinsicaly, the pneumatic tube system is one-way. You load the tube, launch it, and ..... That's it.
It does not include any means of verifying that the delivery succeeded.
It does not include any means of verifying that the correct person received the delivery.
It (usually) does not even include any means of verifying that the exit point of the tube is open, available and unblocked.
All of these shortcomings can be worked around using fancy mechanisms, but that requires fancy mechanisms. Which impose their own cost, failure points, and complexity to the system.

Damage of delicates:
The delivery system is inherently violent, with lots of sharp accelerations and stops. And people will inevitably try to ship stuff that is not strong enough for the system.
(anecdote: Back in the '70s ,at a local store that used a pneumatic tube system to deliver invoices, money, and office stationery to and from the cashiers:
Cashier sends a message "my pen is dying, send a replacement please".
Instead of a ballpoint pen, the warehouse sends through a fountain pen. Which shatters upon arrival, splashing cashier and several customers including myself with black ink.)

Breakdowns:
An air leak, or a misaligned cartridge seal, or something sticky either on the cartridge or in the pipes, brings the whole system to a screeching halt. Then someone has to get the rod, and start reaming the system to remove the blockage, then again with a rag to clean it, then again with another rag to either oil or powder the tube, depending on the system. BIG downtime.

People are idiots:
The pneumatic tube system is very much open to abuse, and inevitably some braindead person will play with it. "What happens if I put a can of Cola in this thing, the size seems about right", they wonder.
Or, "Hey Pete, you want a HotDog? Exxxxxxpress delivery coming right up!".
These abuses inevitably lead to the scenario above, where the Man with the Rod needs to be called out.

Pneumatic tube delivery systems work fine, in a professional environment with trained, disciplined users. For frequent delivery over relatively short distances between a very small number of recipients.
Over long distances, or where the number of recipients become many, or the operators are mere Humans.... They are not at all optimal.

PcMan
  • 26,325
  • 3
  • 63
  • 129
